Smoke Generator for Brick or Block Smokehouses

Smoke Generator for Brick or Block Smokehouses
$119.00 USD
$119.00 USD
Sale Sold out
In Stocksame day dispatch
The Smokai Smoke Generator offers a practical, cost-effective and versatile way to deliver a controllable volume of fresh, wood-fired smoke into your smokehouse. With three sizes to choose from, there is a Smokai to suit virtually any smokehouse.

Heavy Duty Stainless Steel

Dapibus lorem consequat quis a placerat nibh vestibulum varius.

Smokai Modular System™

Invented by our founders in 2011, the modular design makes mounting, assembly, disassembly, ash disposal and cleaning quick. The precision-engineered, heavy-duty components lock together in seconds, so the Smoke Generator comes off the smokehouse for cleaning and goes straight back on.

Made in New Zealand

Dapibus lorem consequat quis a placerat nibh vestibulum varius.

1 12

Smoke Generator for Brick or Block Smokehouses

Smoke Generator for Brick or Block Smokehouses
$119.00 USD
$119.00 USD
Sale Sold out
In Stocksame day dispatch
The Smokai Smoke Generator offers a practical, cost-effective and versatile way to deliver a controllable volume of fresh, wood-fired smoke into your smokehouse. With three sizes to choose from, there is a Smokai to suit virtually any smokehouse.
Size

Not sure which size suits your needs?

Power Source

Go cordless for complete freedom, or keep it simple with plug-in mains AC power. We recommend cordless for the most versatile Smokai setup.

The powerful 6,000 mAh rechargeable option gives you up to 40hrs smoking time on one charge. And when it’s time to recharge, plug it in and keep smoking while it charges.

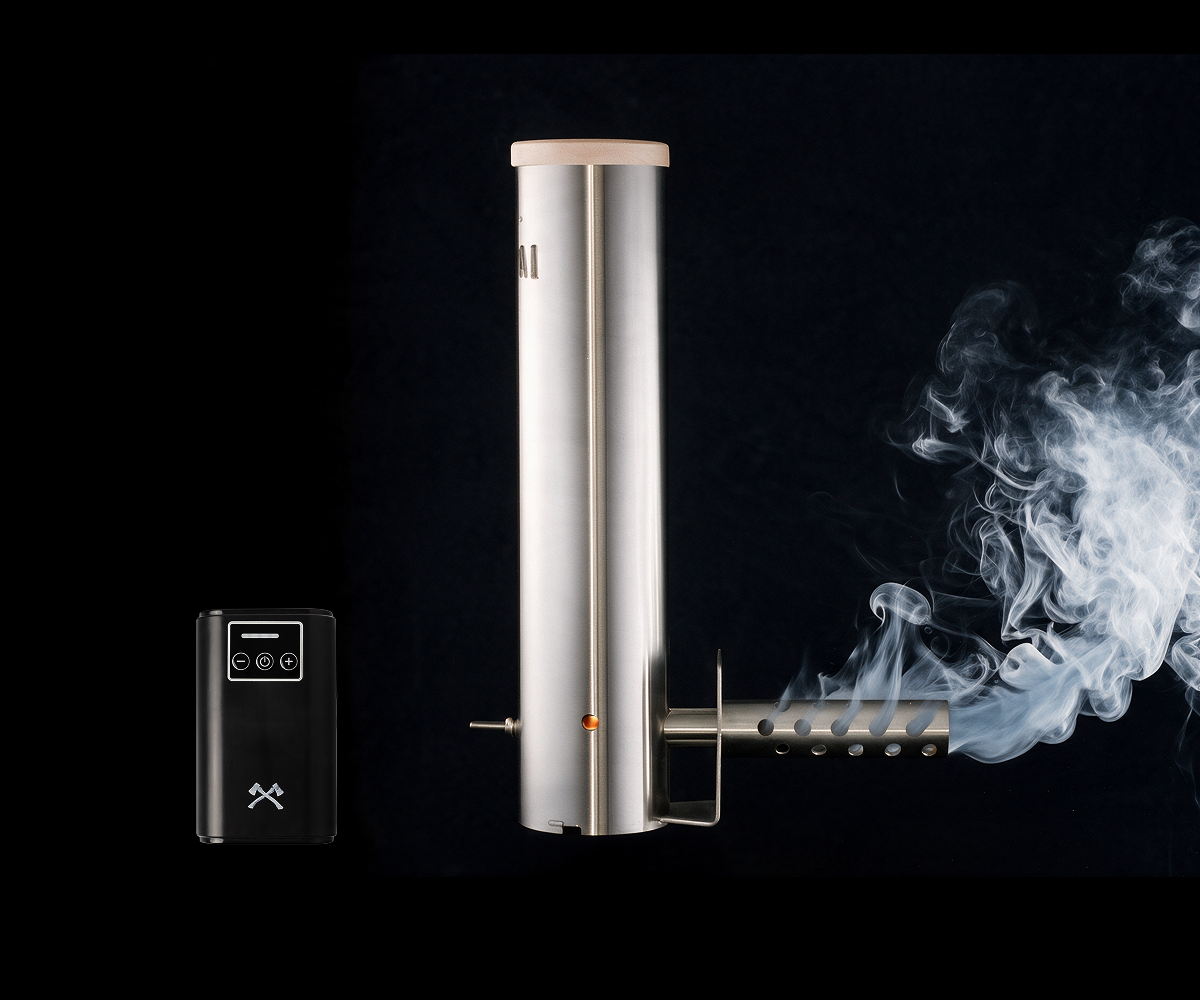

Cordless Power

Complete your setup

The essentials that help you complete your Smokehouse setup.

Adequate airflow is crucial for any smoking setup. The Smokai adjustable pinwheel vent offers a convenient solution for controlling and adjusting airflow in your smoking chamber...

Smokai Adjustable Vent 100mm
Your order

$119.00 USD

You've selected 1L Classic / Mains AC Power - USA/CAN 110-120V — Smoke Generator for Brick or Block Smokehouses.

Pay securely with...

Amex ApplePay GooglePay Mastercard afterpay ShopPay Visa Visa
Your Smokehouse: Controlled smoke volume. Leave it running.

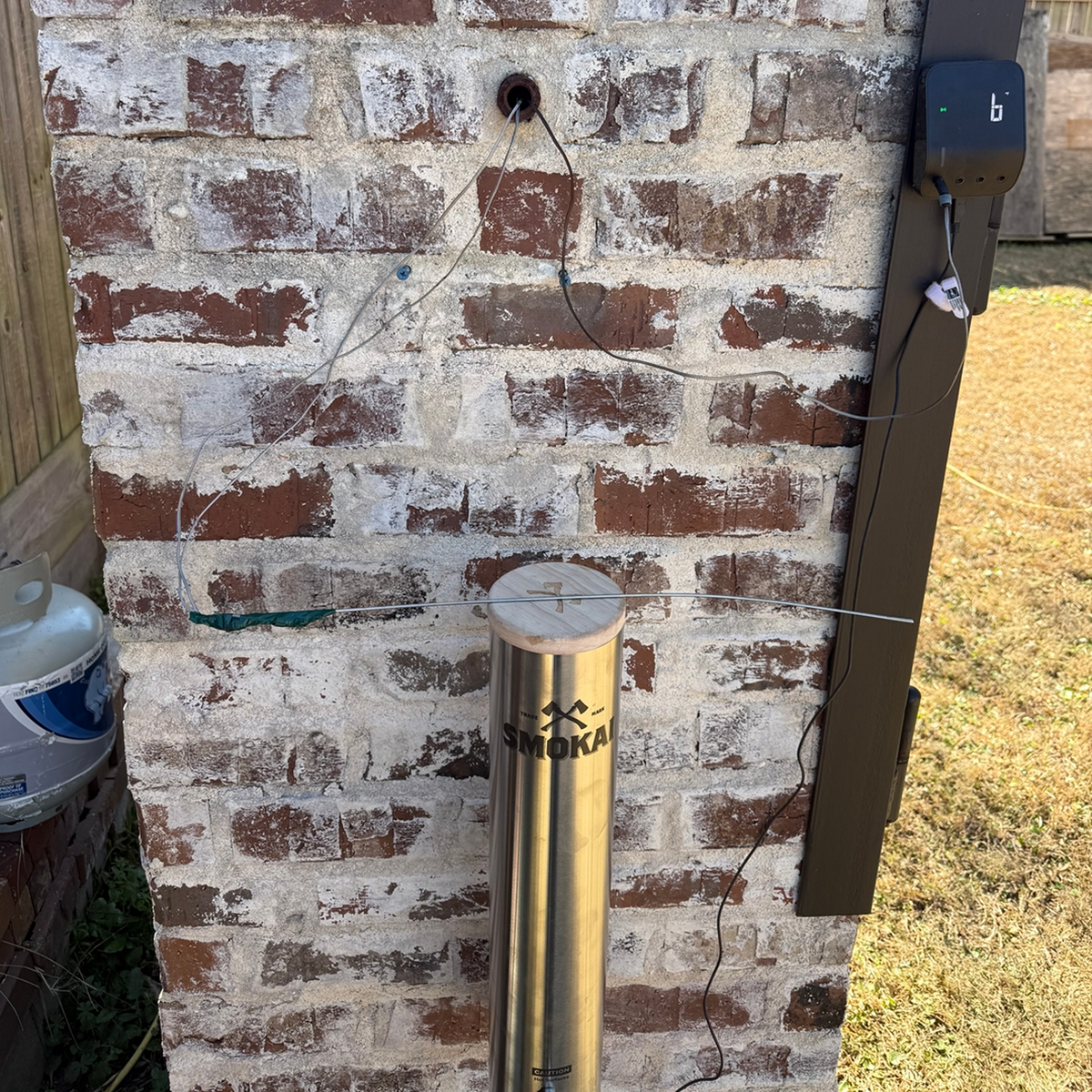

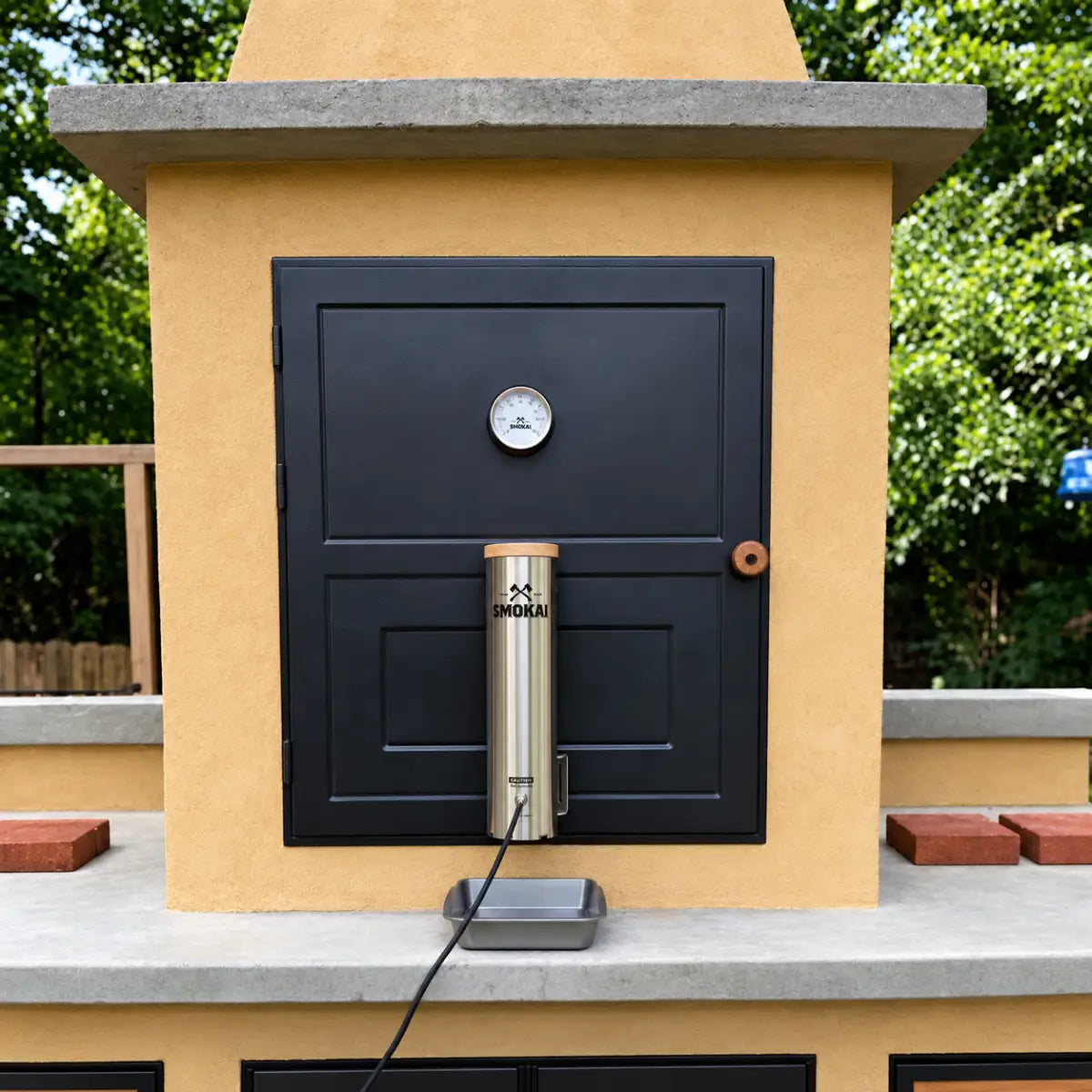

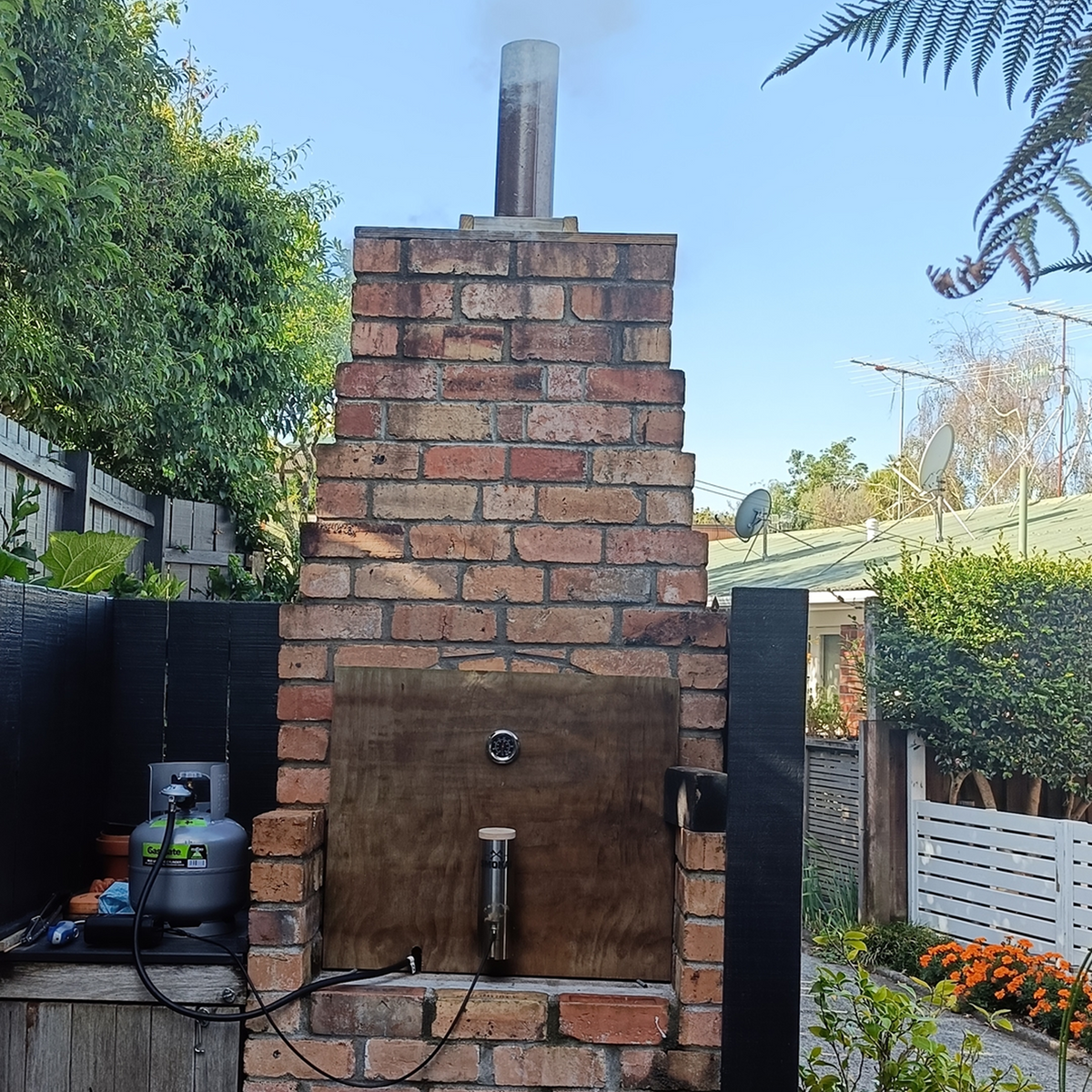

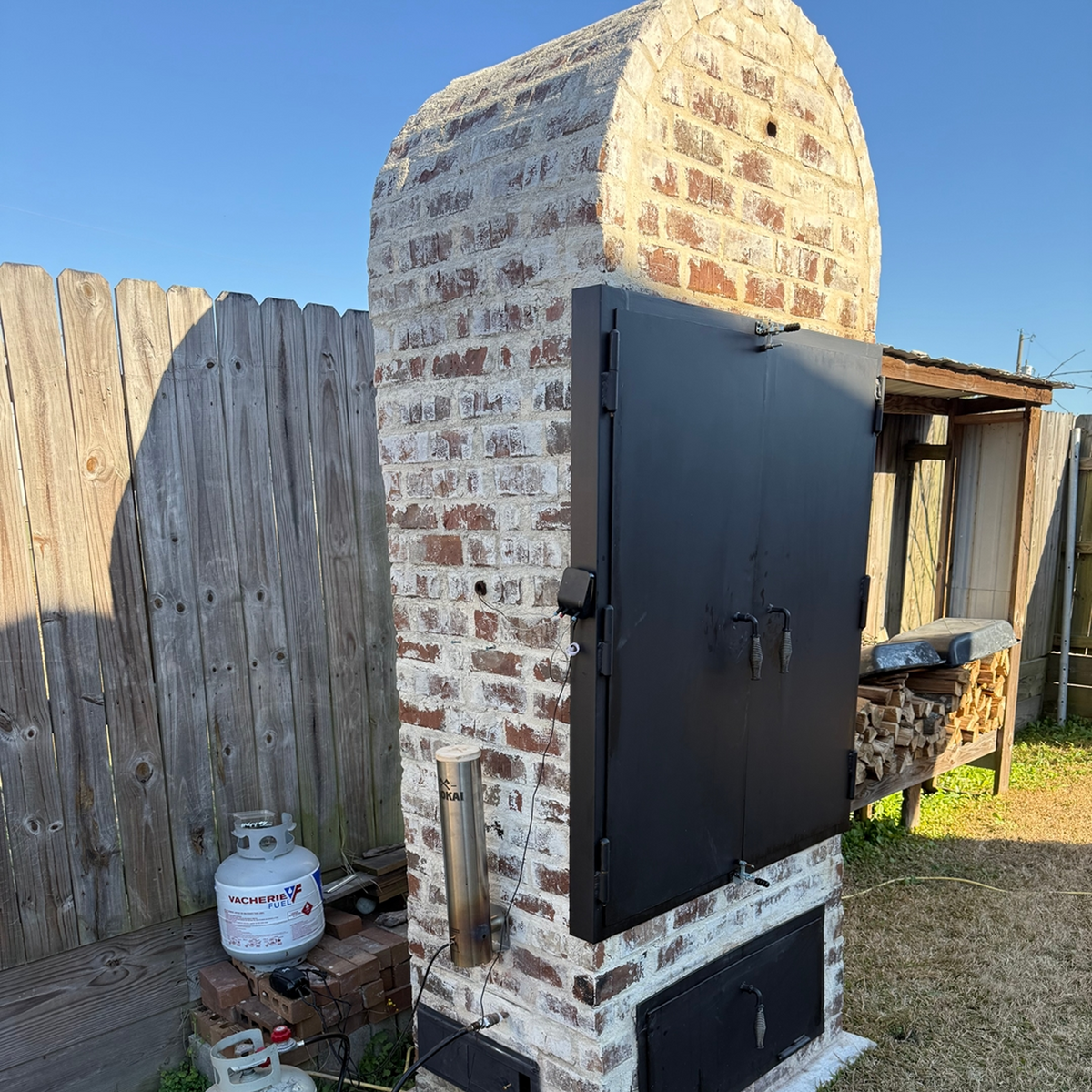

Mount the Smoke Generator to the outside and your smokehouse has a steady, adjustable supply of natural wood-fired smoke with no separate fire pit to feed.

  • Controlled smoke without the need for a separate fire pit, trench or pipe.
  • Cold smoke, or add a separate, safe heat source and hot smoke in the same smokehouse.
  • Up to 32* hours of smoke on one load (4 Litre Monster)
  • Mains or cordless battery air pump (up to 40 hours per charge) for smokehouses off the grid

*Up to 32 hours using 100% hickory hardwood pellets with the air pump on its lowest speed and favourable conditions. Run time varies with pump speed, wood type, wood variety and conditions.

Control Your Smoke™

Mounted to the outside of your smokehouse, the Smokai Smoke Generator delivers a controllable volume of fresh, wood-fired smoke. Dial it from light to heavy to suit the fish, game or meat, hanging or on the racks.

Hot Smoking

The Smokai Smoke Generator provides the wood-fired smoke; a separate, safe heat source in your smokehouse provides the heat. Adjust smoke and heat independently, from smoked salmon and jerky to hams and sausage.

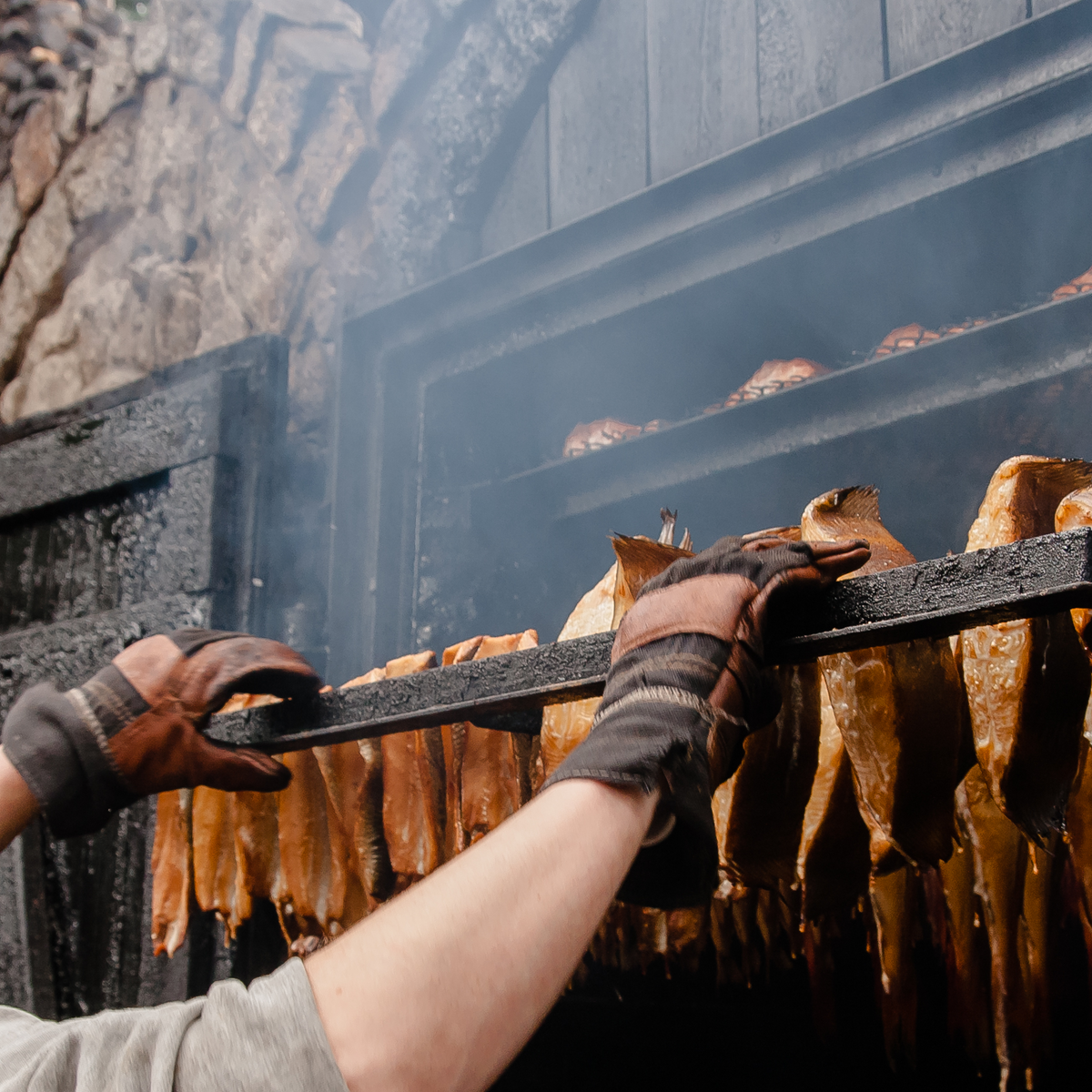

Cold Smoking

Let the Smoke Generator do the work. Salmon, trout, bacon, cheese and butter, smoked for long sessions. Adjust to suit your taste, from light to heavy.

Smokai Modular System™

Invented by our founders in 2011, the modular design makes mounting, assembly, disassembly, ash disposal and cleaning quick. The precision-engineered, heavy-duty components lock together in seconds, so the Smoke Generator comes off the smokehouse for cleaning and goes straight back on.

Trusted by the Best

Smokai Smoke Generators are used everyday around the world by home enthusiasts, fishermen, hunters, pit masters, celebrity chefs, artisian smokehouses, butchers, a michelin star smokehouse and many more.

Control Your Smoke™

Mounted to the outside of your smokehouse, the Smokai Smoke Generator delivers a controllable volume of fresh, wood-fired smoke. Dial it from light to heavy to suit the fish, game or meat, hanging or on the racks.

Hot Smoking

The Smokai Smoke Generator provides the wood-fired smoke; a separate, safe heat source in your smokehouse provides the heat. Adjust smoke and heat independently, from smoked salmon and jerky to hams and sausage.

Cold Smoking

Let the Smoke Generator do the work. Salmon, trout, bacon, cheese and butter, smoked for long sessions. Adjust to suit your taste, from light to heavy.

Smokai Modular System™

Invented by our founders in 2011, the modular design makes mounting, assembly, disassembly, ash disposal and cleaning quick. The precision-engineered, heavy-duty components lock together in seconds, so the Smoke Generator comes off the smokehouse for cleaning and goes straight back on.

Trusted by the Best

Smokai Smoke Generators are used everyday around the world by home enthusiasts, fishermen, hunters, pit masters, celebrity chefs, artisian smokehouses, butchers, a michelin star smokehouse and many more.

Frequently Asked Questions

  • Bolt it to the outside of your smokehouse, fill the hopper with dry hardwood chips or pellets, light it and set the smoke volume. Your Smokai Smoke Generator delivers steady, controllable wood-fired smoke for hours on one load.

  • Yes. All three Smokai Smoke Generators mount to a brick or block smokehouse with no adaptor, but due to the thicker walls of brick or block smokehouses, the 3L Magnum or 4L Monster Smoke Generators with an optional extended XL smoke outlet is likely to be required.

    Drill a hole low on the smokehouse for the smoke outlet and two small holes for the fittings, fit the smoke outlet through the hole and secure the Smoke Generator with the hardware supplied.

  • The 3 Litre Magnum and 4 Litre Monster are the natural choices for most brick or block smokehouses. Choose between them based primarily on smokehouse size, the smoke volume required and how long you want to smoke on one load.

WE’RE HERE TO HELP

FAQs Page Product Helper Tool Contact Page

Have a question not answered here or in your instruction manual? Browse our FAQ page or reach out for help.

View full details

GRILL TYPES

This is a brief piece of copy to give the user a strong understanding of what they are selecting. We should be brief, but also write as though the user is a novice.

GAS GRILL

This is a place to really go into detail about the gas grill. This is just example text to fill the space. Smokai provides you with the benefits that you would expect from a dedicated hot smoker and more including the ability to cold smoke your hard earned fish, game or quality cut from the butcher.

Smokai provides you with the benefits that you would expect from a dedicated hot smoker and more including the ability to cold smoke your hard earned fish, game or quality cut from the butcher.

  • Product Description

    survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

  • Product Contains

    survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum2.

How it works

IT’S EASY TO SMOKE WITH SMOKAI

Step 01 Add your wood

Fill your Smokai Smoke Generator with your choice of 100% natural hardwood BBQ pellets or 2–10 mm wood chips, in the wood variety you prefer.

Step 02 Bring on the smoke

Turn on, light the wood and let Smokai deliver a controllable volume of fresh, natural wood-fired smoke to suit your food and your taste.

Step 03 Smoke it your way

Dial the smoke up or down. Cold smoke fish, cheese, bacon and more, or fire up your separate heat source to hot smoke brisket, steak, lamb and beyond, introducing as much fresh, wood-fired smoke as you choose.

Step 04 Sit back with the people who matter

Enjoy food packed with authentic smokehouse flavour that brings friends and family together and keeps them coming back for more.

Installing Your Smokai

RATED 4.9 BY SMOKERS WORLDWIDE

Love my Smokai Smoke Generator. I also have a ring burner set up to generate a bit of heat. I have done two smokes and I’m really pleased with the results.

Robert B.

The Monster produces a ton of smoke and fills up the smoker! Made a great batch of sausage. I’m really impressed with it! High quality construction, the wood chips lit very easily and stayed burning producing great smoke for 6 hours with pump on high. Highly recommend!

Thomas L.
Our philosophy

SMOKE EQUALS FLAVOR

Smokai’s product philosophy is simple: design the worlds best Smoke Generators and Accessories that give people control over natural wood-fired smoke that delivers authentic smokehouse flavour.

Every product is purposefully engineered using robust materials, modular construction and practical details that make it easy to use, maintain and adapt to different smoking setups. No unnecessary complexity. No disposable design. No gimmicks. Just dependable, beautifully made equipment built to perform season after season.

  • The Smoke Generator runs on 1/16 to 3/8 in (2 to 10 mm) wood chips, or 100% hardwood BBQ pellets (with no binders or additives), available from most BBQ stockists.

    The gravity-fed design and controlled airflow convert that wood into smoke at the rate you set. Exact run time depends on your output setting, your wood (chips burn faster than pellets), wood variety and conditions.

    Whatever you load, you’re measuring smoke in hours, not minutes.

  • Because we're relentless about quality: the materials, the component manufacturing, the quality control, the testing, the performance. Keeping production in our New Zealand factory is what lets us hold that standard at every step.

    It shows in the details. Certified, heavy-duty 304L stainless steel, milled into tube on site to AS 1528.1, the standard for stainless steel tube in food processing and other hygienic applications. Every Smoke Generator passes through multiple checks at a tube manufacturing level, component production level, again as a completed assembly, and is then delivered assembled.

    Even the few parts that we have to source offshore from the most reputable manufacturers are held to the same bar: air pumps custom-built to our specification to match the Smoke Generator, and independently certified high-temperature, food-safe silicone tube to feed the air to the burn.

    We've built them this way since 2011. We do things right or not at all.

  • A fire needs constant feeding and monitoring. The smoke volume rises and falls as the fire burns up and down. Then there’s channelling the smoke through a trench or pipe to cool the smoke down to cold smoking temperatures.

    A Smokai Smoke Generator mounts outside the smokehouse and holds the smoke volume you set, hour after hour. You choose the wood. The Smoke Generator keeps the smoke coming. No messy fire pit, no constant monitoring, no constant feeding.

  • All that is required to mount a Smoke Generator to your smokehouse are a few small holes. One for the smoke delivery tube (smoke outlet or baffle) and a couple of smaller holes for fittings that are used to secure the Smoke Generator in place.

  • Yes. You can either disassemble the Smoke Generator while leaving its built-in mount attached to the smokehouse, or quickly remove the entire Smoke Generator.

    The Smokai-Modular-System™ is designed to make disassembly, ash disposal, cleaning and reassembly quick and straightforward. Its precision-engineered components lock together in seconds.

    We recommend fixing the built-in mount to the wall with two masonry anchors (not supplied) and wing nuts. Threaded anchors allow for the wing nuts to be spun on and off, so the Smoke Generator can still be removed in seconds.

  • Yes. Smokai Smoke Generators are designed to mount directly to the side of most brick or block smokehouses. An extended smoke outlet tube (1 Litre Classic) or an XL Baffle (3 Litre Magnum and 4 Litre Monster) is available to extend the outlet through the wall, ensuring smoke is discharged only inside the smoking chamber.

    Smokai 1 Litre Classic: Maximum Smokehouse Wall Thickness

    • Standard: 30mm (1 3/16″)
    • With OPTIONAL Extended XL Smoke Outlet Tube: 105mm (4 1/8″)

    Smokai 3 Litre Magnum and 4 Litre Monster: Maximum Smokehouse Wall Thickness

    • With Baffle: 25mm (1″)
    • Without Baffle attached: 25mm (1″)
    • With OPTIONAL Extended XL Baffle: 190mm (8″)

WHICH SMOKE GENERATOR IS THE RIGHT SIZE FOR ME?

Your ideal Smoke Generator size depends on what you’re smoking, whether you’re hot or cold smoking, the chamber you’re working with and your typical smoking time.

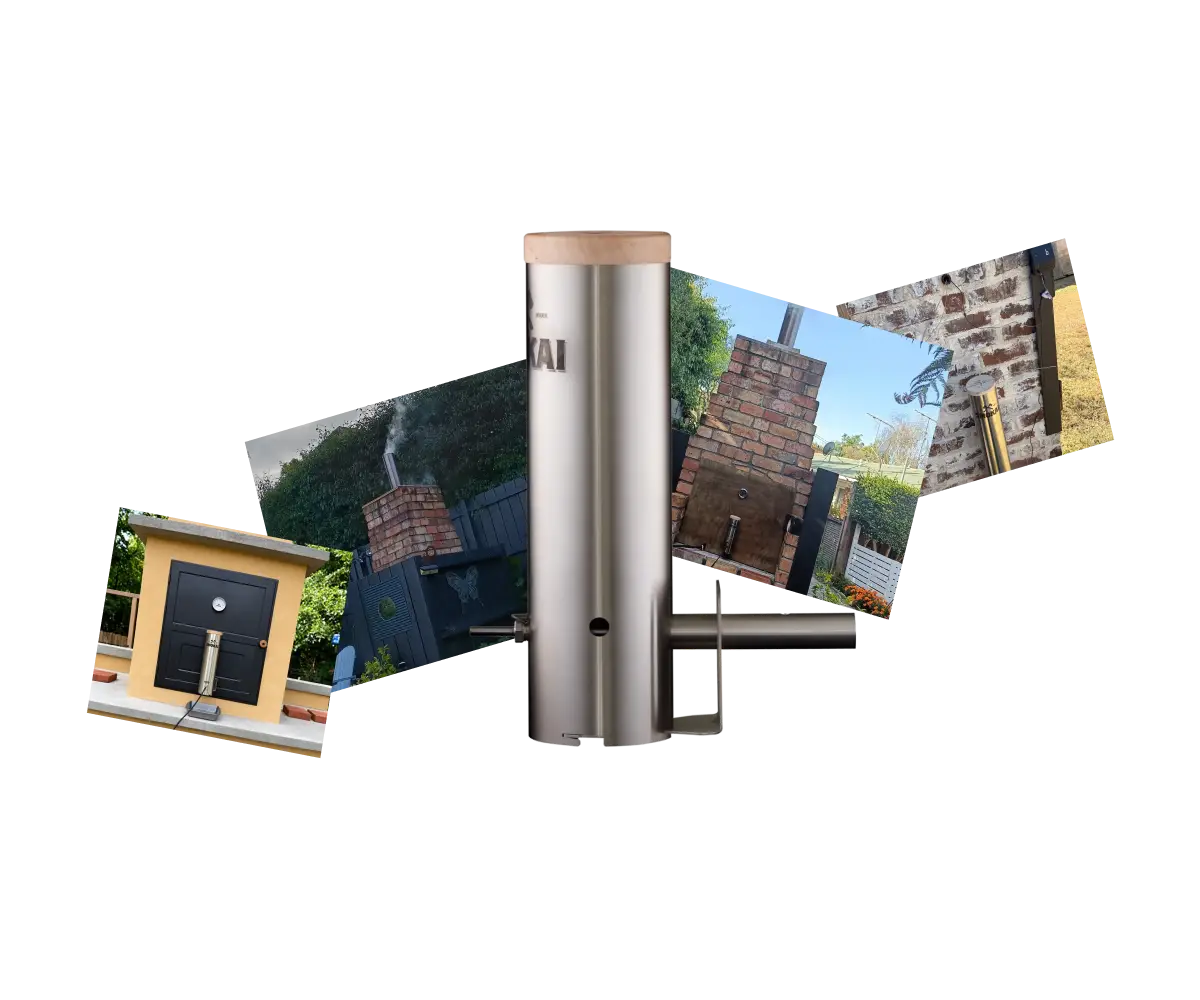

Smokai 1 Litre Classic Smoke Generator

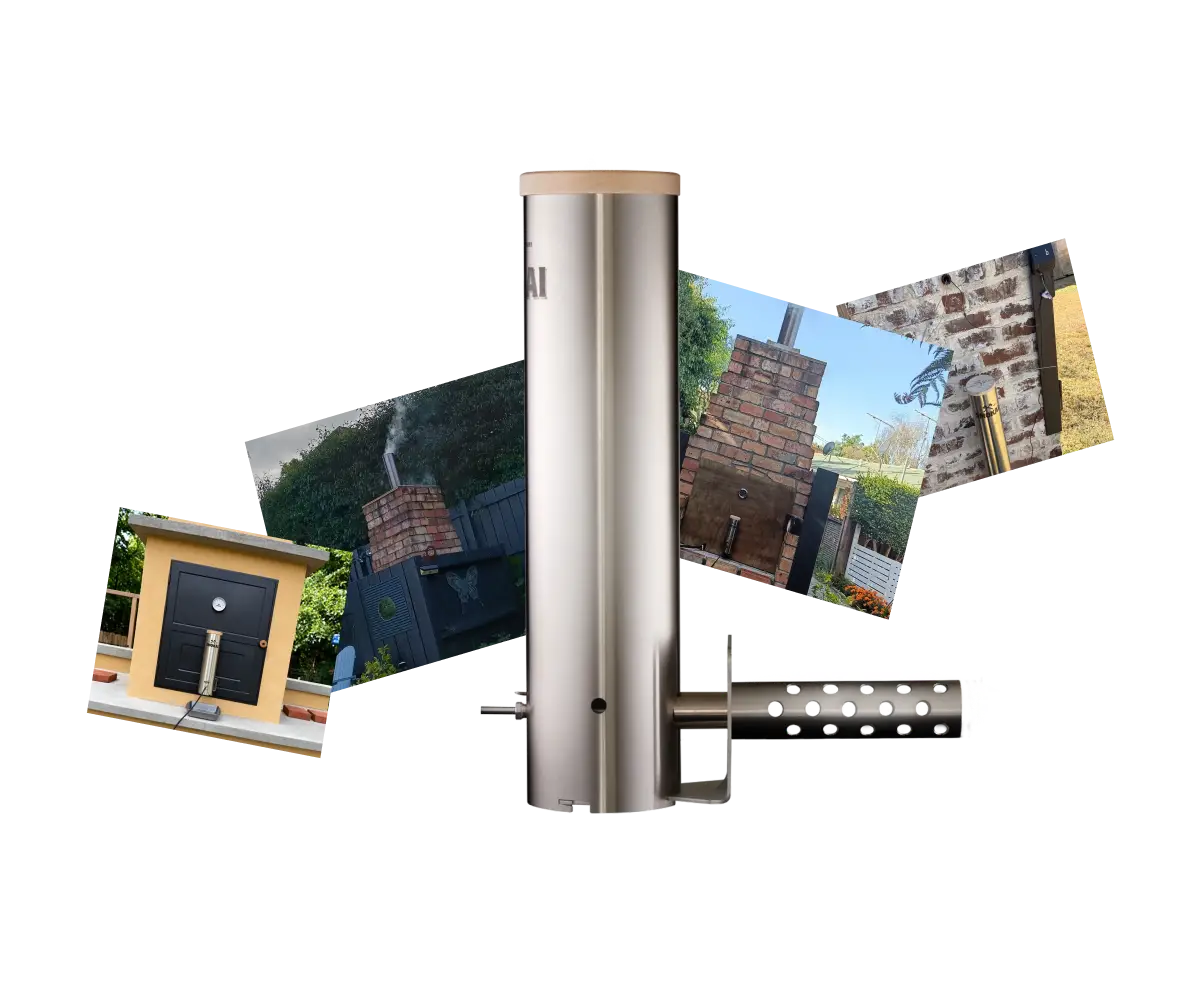

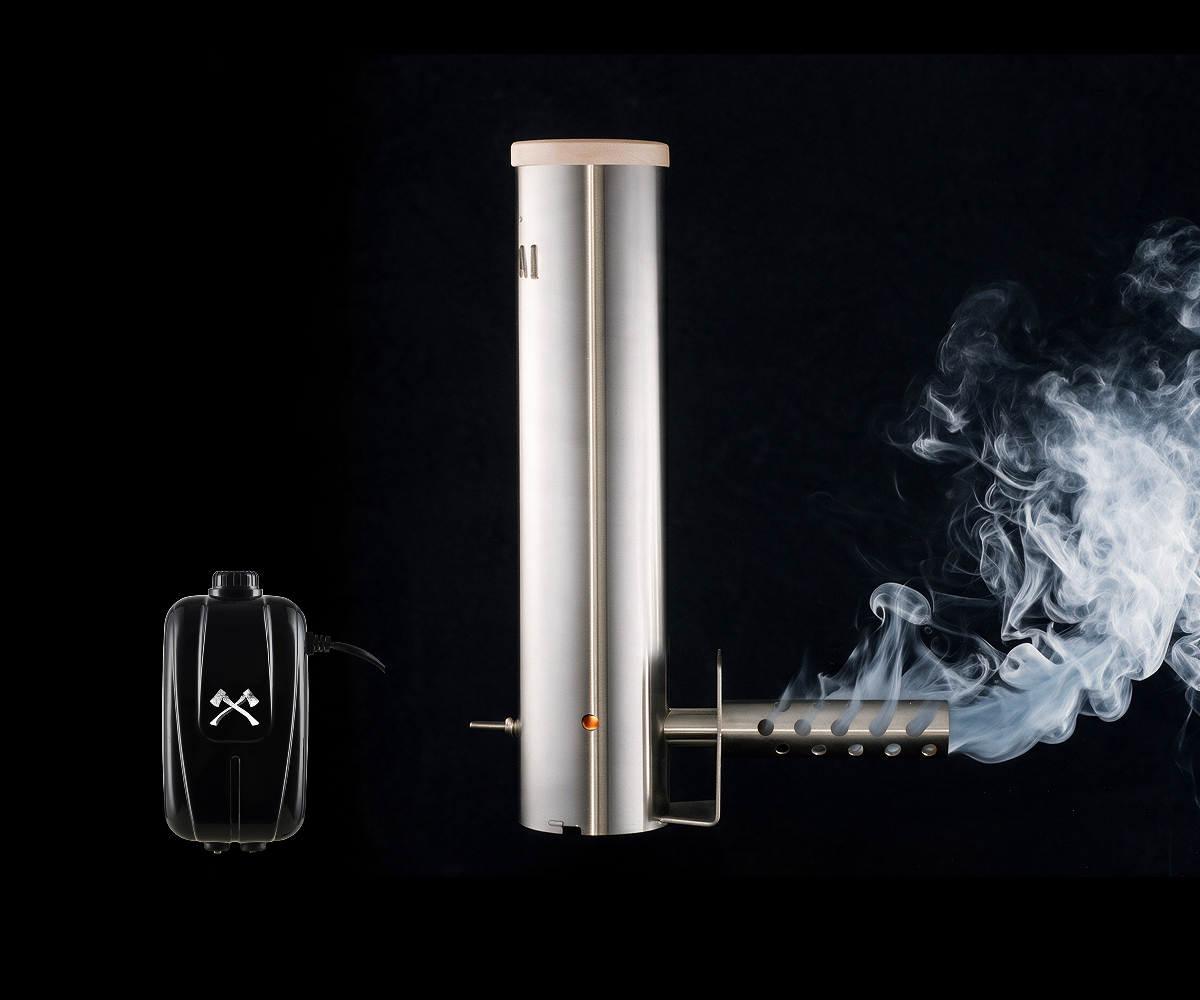

Smokai 3 Litre Magnum Smoke Generator
Smokai 4 Litre Monster Smoke Generator
Size

SMOKAI 1L CLASSIC
SMOKE GENERATOR

From $119.00

SMOKAI 3L MAGNUM
SMOKE GENERATOR

From $249.00

SMOKAI 4L MONSTER SMOKE GENERATOR

From $269.00

Run time per hopper load*

Up to 12 hrs*

Up to 24 hrs*

Up to 32 hrs*

Wood fuel

100% hardwood BBQ pellets, 2–10 mm wood chips, or a mix of both

100% hardwood BBQ pellets, 2–10 mm wood chips, or a mix of both

100% hardwood BBQ pellets, 2–10 mm wood chips, or a mix of both

Smoke output

Standard

~70% larger burn area than the Classic. More smoke.

Same as the Magnum.
~70% larger burn area than the Classic. More smoke.

Smoke diffuser

None

Included

Included

Maximum Chamber Wall Thickness

Standard: 30mm

With OPTIONAL Extended Xl Smoke Outlet Tube: 105mm

With diffuser: 25mm

Without diffuser: 25mm

With OPTIONAL Extended XL Baffle: 210mm

With diffuser: 60mm

Without diffuser: 25mm

With OPTIONAL Extended XL Baffle: 210mm

Mounting hole size required (excluding fittings)

Steel or block wall: 20mm (¹³⁄₁₆”)
Wooden chamber wall: 30mm (1 ¹⁄₄”)

With Diffuser:
Steel or block wall: 40mm (1 ¹⁄₂")
Wooden wall: 55mm ( 2 ³⁄₁₆”)

Without Diffuser:
Steel or block wall: 27mm (1 ¹⁄₁₆")

With Diffuser:
Steel or block wall: 40mm (1 ¹⁄₂")
Wooden wall: 55mm ( 2 ³⁄₁₆”)

Without Diffuser:
Steel or block wall: 27mm (1 ¹⁄₁₆")

Net Weight (Smoke Generator only)

~ 1 Kg / 2.2 lb

~ 2.25 Kg / 5 lb

~2.65 Kg / 5.8 lb

Dimensions
View Dimensions
View Dimensions
View Dimensions

* Smoking times vary depending on pump output, wood type (2-10mm chips or 100% hardwood pellets), size, variety, quality, manufacturer, altitude and other environmental conditions. Up to 12 hours using 100% hickory wood pellets at the lowest pump output.

MOUNTING YOUR SMOKE GENERATOR

Select a suitable location on the outside of your smokehouse to mount the Smoke Generator. It should be low down, easily accessible and positioned in a well-ventilated area.

Step 01

DRILL

Drill a 20mm (¹³⁄₁₆”) hole for the 1L Classic, or a 40mm (1 ¹⁄₂") hole for the 3L Magnum or 4L Monster smoke outlet. You may require an (optional) extra-long smoke outlet to pass though the walls. Drill and install suitable masonry expansion anchors into the block. Secure the Smokai using wing nuts, allowing it to be firmly mounted during use while remaining quick and easy to remove for cleaning, storage or maintenance.

Step 02

MOUNT TO YOUR SMOKEHOUSE

Pass the smoke outlet through the hole and fix the Smoke Generator with your preferred fittings.

Step 03

START SMOKING

Fill with your preferred smoking wood. Turn the pump to high. Light. Once lighted, leave burning for 5 minutes, then adjust to your preferred smoke volume.

Meet Tony, the man behind the brand

THE HARD YARDS DESERVE A REWARD

Earned on the water, up in the hills, or from a walk down to the local store and back. That effort should end in something worth remembering. Raw ingredients turned into smoked food that gets eaten, shared, and talked about long after the plate's empty.

That's where Smokai started. I'm a fisherman and a hunter, and smoking is still the best way I know to serve up your hard-fought fish or game or a good cut from the butcher. In 2010, we invented the first Smokai Smoke Generator: modular, stainless steel, built to last. All these year later, that design remains largely unchanged.



Our mission is to put the right tools, woods, resources and knowledge in your hands, so you get legendary results every time you cold or hot smoke your fish, meat or any other suitable food.

We do the lot ourselves, start to finish, in New Zealand. We're a bit obsessed with quality. Compare our gear to anything else and you'll see it.



Today Smokai has shipped to over 65 countries and is used daily by backyard smokers, pit masters, chefs, butchers and artisan smokehouses. Same passion behind it. Same respect for what nature provides.


Because legendary flavour begins with quality smoke.



Cheers, Tony

WHAT'S INCLUDED?

Mount the Smoke Generator to the outside and your smokehouse has a steady, adjustable supply of natural wood-fired smoke with no separate fire pit to feed.

  • 1L Classic Smoke Generator
  • Mains AC Power - USA/CAN 110-120V
  • Hardwood lid
  • Variable speed air pump
  • Food safe, high temperature silicone air tube
  • 304 stainless steel fasteners
  • Comprehensive owners manual
